ZS3L Module Datasheet

ZS3L is a low-power embedded Zigbee module that Tuya has developed. It consists of a highly integrated RF processor chip (EFR32MG21A020F768IM32-B) and several peripheral components, with an embedded 802.15.4 PHY/MAC Zigbee network protocol stack and robust library functions.

Product overview

ZS3L is embedded with a 32-bit low-power Arm Cortex-M33 core, 768 KB flash memory, and 64 KB random-access memory (RAM), and has extensive peripherals.

ZS3L is a FreeRTOS platform that integrates all the function libraries of the Zigbee MAC and TCP/IP protocols. You can develop embedded Zigbee products as required.

Features

• Embedded low-power 32-bit Arm Cortex-M33 processor, which provides a digital signal processor (DSP) instructions and floating-point units (FPUs) and can also function as an application processor
• Clock rate: 80 MHz
• Working voltage: 2.0 V–3.8 V
• Peripherals: 9×GPIOs, 1×UART, 1×ADC
• Zigbee Connectivity
  • 802.15.4 MAC/PHY
  • Channels 11 - 26@2.400-2.483GHz, 250 Kbit/s air interface rate
  • Maximum output power: +20 dBm; dynamic output power: > 35 dB
  • Runtime power consumption: 60 µA/MHz; current in sleep mode: 5 µA
  • Proactive device pairing for terminals
  • Onboard PCB antenna
  • Working temperature: –40℃ to +105℃
  • AES-128 or AES-256 hardware encryption

Applications

• Intelligent building
• Smart household and home appliances
• Smart socket and light
• Industrial wireless control
• Baby monitor
• Network camera
• Intelligent bus

Change history

Module interfaces

Dimensions and footprint

ZS3L has two rows of pins with a 2±0.1 mm pin spacing.

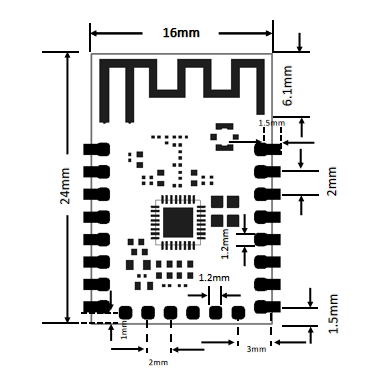

The ZS3L dimensions (H x W x L) are 2.8±0.15 mm x 24±0.35 mm x 16±0.35 mm. Figure 2-1 shows the ZS3L front and rear views.

Interface Pin definition

Note: Test pins are not recommended.

Electrical parameters

Absolute electrical parameters

Working conditions

Current consumption during constant transmission and receiving

Working current

RF features

Basic RF features

TX performance

Performance during constant transmission

RX performance

RX sensitivity

Antenna

Antenna type

ZS3L uses an onboard PCB antenna or Ipex antenna.

Antenna interference reduction

To ensure optimal Zigbee performance when the Zigbee module uses an onboard PCB antenna, it is recommended that the antenna be at least 5 mm away from other metal parts.
To prevent an adverse impact on the antenna radiation performance, avoid copper or traces along the antenna area on the PCB.

Packaging and production instructions

Mechanical dimensions

The PCB dimensions (H x W x L) are 2.8±0.15 mm x 24±0.35 mm x 16±0.35 mm.

Side view

Recommended schematic encapsulation

Recommended PCB Encapsulation-Pin header

ZS3L can be mounted onto a PCB by using an SMT placement machine or through-hole mounted onto the PCB through a pin header. Figure 6-4 shows the pin header dimensions.

Recommended PCB Encapsulation-SMT

Production instructions

1. Use an SMT placement machine to mount components to the stamp hole module that Tuya produces within 24 hours after the module is unpacked and the firmware is burned. If not, vacuum pack the module again. Bake the module before mounting components to the module.

   • SMT placement equipment:
     • Reflow soldering machine
     • Automated optical inspection (AOI) equipment
     • Nozzle with a 6 mm to 8 mm diameter
   • Baking equipment:
     • Cabinet oven
     • Anti-static heat-resistant trays
     • Anti-static heat-resistant gloves

2. Storage conditions for a delivered module are as follows:

   • The moisture-proof bag is placed in an environment where the temperature is below 30℃ and the relative humidity is lower than 70%.

   • The shelf life of a dry-packaged product is six months from the date when the product is packaged and sealed.

   • The package contains a humidity indicator card (HIC).



3. Bake a module based on HIC status as follows when you unpack the module package:

   • If the 30%, 40%, and 50% circles are blue, bake the module for 2 consecutive hours.
   • If the 30% circle is pink, bake the module for 4 consecutive hours.
   • If the 30% and 40% circles are pink, bake the module for 6 consecutive hours.
   • If the 30%, 40%, and 50% circles are pink, bake the module for 12 consecutive hours.

4. Baking settings:

   • Baking temperature: 125±5℃
   • Alarm temperature: 130℃
   • SMT placement ready temperature after natural cooling: < 36℃
   • Number of drying times: 1
   • Rebaking condition: The module is not soldered within 12 hours after baking.

5. Do not use SMT to process modules that have unpacked for over three months.
   Electroless nickel immersion gold (ENIG) is used for the PCBs. If the solder pads are exposed to the air for over three months, they will be oxidized severely and dry joints or solder skips may occur. Tuya is not liable for such problems and consequences.

6. Before SMT placement, take electrostatic discharge (ESD) protective measures.

7. To reduce the reflow defect rate, draw 10% of the products for visual inspection and AOI before first SMT placement to determine a proper oven temperature and component placement method. Draw 5 to 10 modules every hour from subsequent batches for visual inspection and AOI.

Recommended oven temperature curve

Perform SMT placement based on the following reflow oven temperature curve. The highest temperature is 245℃.

Based on the IPC/JEDEC standard, perform reflow soldering on a module at most twice.

Storage conditions

MOQ and packing

Appendix: Statement

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, according to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled rolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

Important Note

This radio module must not be installed to co-locate and operating simultaneously with other radios in the host system except following FCC multi-transmitter product procedures. Additional testing and equipment authorization may be required to operate simultaneously with other radios.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end-user.

The host product manufacturer is responsible for compliance with any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

The end-user manual shall include all required regulatory information/warning as shown in this manual, including: This product must be installed and operated with a minimum distance of 20 cm between the radiator and user body.

This device has got an FCC ID: 2ANDL-ZS3L. The end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID: 2ANDL-ZS3L”

This device is intended only for OEM integrators under the following conditions:

1. The antenna must be installed such that 20cm is maintained between the antenna and users, and

2. The transmitter module may not be co-located with any other transmitter or antenna.

As long as the 2 conditions above are met, further transmitter tests will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed.
