WR3 Module Datasheet

WR3 is a low-power embedded Wi-Fi module that Tuya has developed. It consists of a highly integrated wireless RF chip (RTL8710BN) and an external flash chip, with an embedded Wi-Fi network protocol stack and varied library functions.

Overview

With the maximum CPU clock rate of 125 MHz, WR3 contains a low-power ARM CM4F, a WLAN MAC, a 1T1R WLAN module, 256 KB static random-access memory (SRAM), 2 MB flash memory, and extensive peripherals.

WR3 is a RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP.

You can develop embedded Wi-Fi products as required.

The structural diagram of WR3:

Features

• Embedded low-power 32-bit CPU, which can also function as an application processor
• The maximum clock rate: 125MH
• Working voltage: 3.3 ± 0.3V
• Peripherals: 7 general-purpose input/output (GPIO), 2 universal asynchronous receiver/transmitters (UART) and 1 analog to digital converter (ADC)
• Wi-Fi connectivity
  • IEEE 802.11 b/g/n
  • Channels 1 to 14@2.4 GHz
  • Support WPA/WPA2 security mode
  • Up to + 20dBm output power in 802.11b mode
  • Support STA/AP/STA+AP working mode
  • Support SmartConfig functions
  • Working temperature: -20℃ to 85℃

Applications

• Intelligent building
• Smart household and home appliances
• Smart socket and light
• Industrial wireless control
• Baby monitor
• Network camera
• Intelligent bus

Change history

Module interfaces

Dimensions and footprint

WR3 has two rows of pins with a 2.0 mm pin spacing. Each row has 8 pins.

The WR3 dimensions are 16±0.35 mm (W)×24±0.35 mm (L) ×3.4±0.15 mm (H).

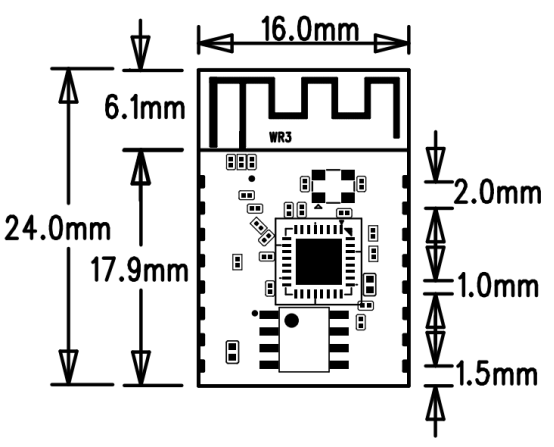

The diagram of dimensions of WR3:

Note: The general shape tolerance is ±0.3 mm, the position tolerance related to the plug-in assembly is reduced to ±0.1 mm, and the tolerance of the 1-mm-thick plate is ±0.1 mm.

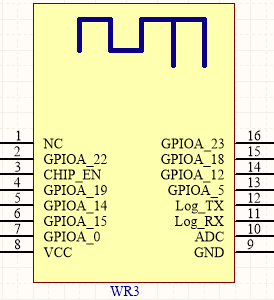

Pin definition

Note: P indicates power supply pins, I/O indicates input/output pins and AI indicates analog input pins.

Electrical parameters

Absolute electrical parameters

Normal working conditions

TX power consumption

Working current

RF parameters

Basic RF features

TX performance

2.4G TX performance

RX performance

RX sensitivity

Antenna

Antenna type

WR3 uses only an onboard PCB antenna.

Antenna interference reduction

To ensure the optimal Wi-Fi performance when the Wi-Fi module uses an onboard PCB antenna, it is recommended that the antenna be at least 15 mm away from other metal parts.

To ensure the antenna performance, the antenna area in the PCB should not be routed or clad with copper. The main points of the layout: 1. Make sure that there is no substrate medium directly below or above the printed antenna. 2. Make sure that the area around the printed antenna is far away from copper, so as to ensure the radiation effect of the antenna to the greatest extent.

For the antenna area of the PCB of the module, see Diagram of Mechanical Dimensions.

Packaging information and production instructions

Mechanical dimensions

The PCB dimensions are 16±0.35 mm (W)×24±0.35 mm (L) ×0.8±0.1 mm (H).

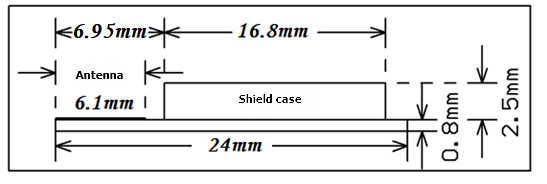

Side view

Note: The default dimensional tolerance is ±0.35 mm. If you have specific requirements on dimensions, make them clear in the datasheet after communication.

The schematic diagram of packaging

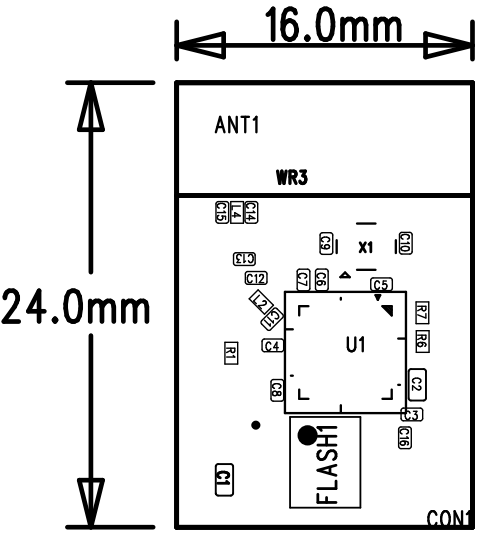

The diagram of PCB packaging

Optionally, WR3 can use the SMT.

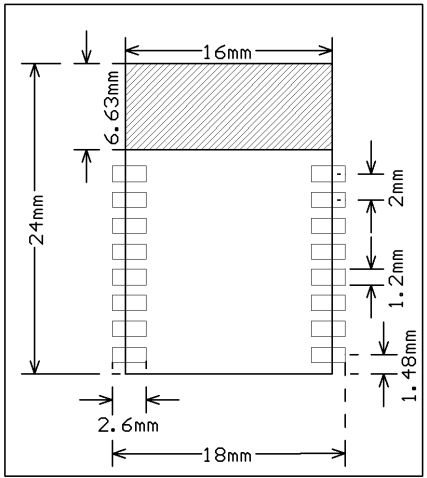

The diagram of PCB packaging-SMT:

Production instructions

1. Mount Tuya’s stamp hole package module with an SMT machine within 24 hours after unpacking and programming the firmware. Otherwise, the module must be packaged again under vacuum. The module must be baked before mounting.

   • SMT equipment
     • Reflow soldering machine
     • Automated optical inspection (AOI) equipment
     • Nozzle with a 6 to 8 mm diameter
   • Baking equipment
     • Cabinet oven
     • Anti-static heat-resistant trays
     • Anti-static heat-resistant gloves

2. Storage conditions for a delivered module are as follows:

   • The moisture-proof bag must be placed in an environment where the temperature is below 30°C and the relative humidity is lower than 70%.
   • The shelf life of a dry-packaged product is 6 months from the date when the product is packaged and sealed.
   • The package contains a humidity indicator card (HIC).


3. Bake a module based on HIC status as follows when you unpack the module package:

   • If the 30%, 40%, and 50% circles are blue, bake the module for 2 consecutive hours.
   • If the 30% circle is pink, bake the module for 4 consecutive hours.
   • If the 30% and 40% circles are pink, bake the module for 6 consecutive hours.
   • If the 30%, 40%, and 50% circles are pink, bake the module for 12 consecutive hours.

4. Baking settings:

   • Baking temperature: 125±5°C
   • Alarm temperature: 130°C
   • SMT ready temperature: naturally cooling temperature: < 36°C
   • The number of drying times: 1
   • Rebaking condition: The module is not soldered within 12 hours after baking.

5. Do not use SMT to process modules that have been unpacked for more than 3 months, because electroless nickel/immersion gold (ENIG) is used for PCBs and they are seriously oxidized for over 3 months. SMT is very likely to cause pseudo and missing soldering. Tuya is not liable for such problems and consequences.

6. Before SMT, take electrostatic discharge (ESD) protective measures.

7. To reduce the reflow defect rate, draw 10% of the products for visual inspection and AOI before the first mounting to determine proper methods for controlling the oven temperature and attaching and placing components. Draw 5 to 10 modules from subsequent batches each hour for visual inspection and AOI.

Recommended oven temperature curve

Perform SMT based on the following reflow oven temperature curve. The highest temperature is 245°C. The reflow temperature curve is as belows:

Storage conditions

MOQ and packaging information

Appendix: Statement

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This device has been tested and found to comply with the limits for a Class B digital device, according to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement

This device complies with FCC radiation exposure limits set forth for an uncontrolled rolled environment. This device should be installed and operated with a minimum distance of 20cm between the radiator and your body.

Important Note

This radio module must not be installed to co-locate and operating simultaneously with other radios in the host system except following FCC multi-transmitter product procedures. Additional testing and device authorization may be required to operate simultaneously with other radios.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end-user.

The host product manufacturer is responsible for compliance with any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed.

The end-user manual shall include all required regulatory information/warnings as shown in this manual, including “This product must be installed and operated with a minimum distance of 20 cm between the radiator and user body”.

This device has got an FCC ID: 2ANDL-WR3. The end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID: 2ANDL-WR3”.

This device is intended only for OEM integrators under the following conditions:

The antenna must be installed such that 20cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna.

As long as the 2 conditions above are met, further transmitter tests will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed.

Declaration of Conformity European Notice

Hereby, Hangzhou Tuya Information Technology Co., Ltd declares that this module product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU,2011/65/EU. A copy of the Declaration of conformity can be found at https://www.tuya.com.

This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE-2012/19/EU). Instead, it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point.

The device could be used with a separation distance of 20cm to the human body.
